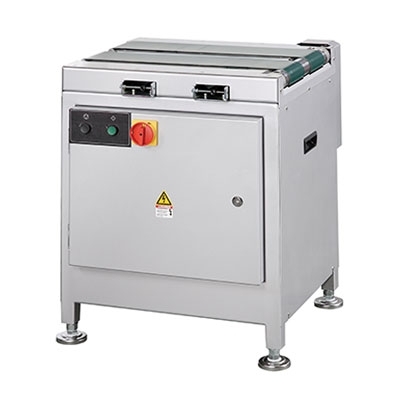

N-AC Accumulating Conveyor
N-AC is an accumulating conveyor designed for bundle buffering.
It can be easily connected with upstream stacker and downstream strapper for bundle accumulating and transporting.
Features
- Photo-eye control
- Siemens PLC control
- Adjustable table height between 800 mm and 900 mm
- Variable conveyor speed
- Up and down stream interlock with complete plug connection
Options
- With side guide and safety guard
- Reverse bundle flow
Technical Data
| Conveyor Speed | 10 - 60 M/minute |
| Bundle Size | Width : max 450 mm, min 100 mm Length : max 450 mm, min 120 mm Height: max 400 mm, min 5 mm |
| Electrical Requirements | 220V, 380V, 400V, 415V 50/60Hz 3PH |
| Weight | 100 kg |
