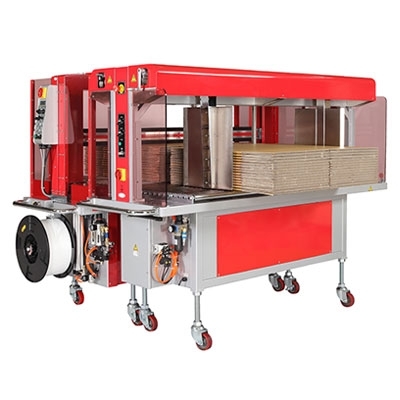

TP-702CCQ Corrugated 3-Side Bundle Squaring and Strapping System
TP-702CCQ is built with TP-702C corrugated strapper combined with the 3-side squaring station CC-BSS. It offers high strapping productivity with the most cost-effective bundle squaring solution for the corrugated industry.
Features
- Robust & compact mechanical strapping head

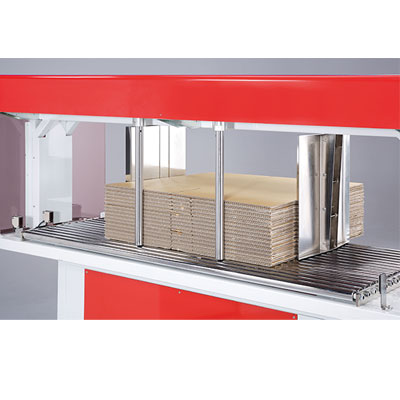

- 3-side squaring bundle control
- Siemens PLC control
- Free access to strap guides (patents registered)

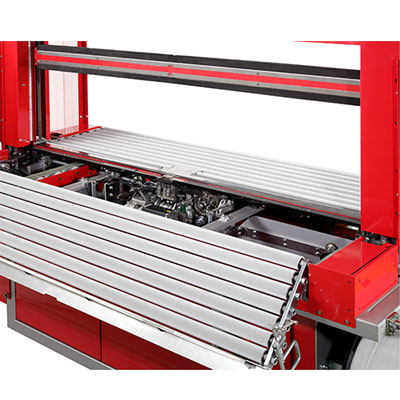

- Hinged roller table
- Auto strap ejector
- Patented jammed-strap ejection device
- Full-width pneumatic press
- Multiple strap function
- Variable conveyor speed
- Strap end ejector
- Adjustable pressure on press and squaring
Options
- Siemens HMI (touch panel)
- Light tower with low strap sensor
- Foot pedal switch
- Strapping cycle counter
Technical Data
| Arch Size | TP-702CCQ-L 1650 mm(W) x 450 mm(H) TP-702CCQ-M 1250 mm(W) x 450 mm(H) |
||
| Strap Width | 5 mm, 6 mm, or 9 mm PP strap | ||
| Tension Range | 1 - 32 kg | Minimum Bundle Size | 200 mm(W) x 20 mm(H) x 300 mm(L) |
| Capacity | Up to 26 bundles/minute (single strap) Up to 20 bundles/minute (double straps) (Model: TP-702CCQ-L) |
||
| Tension Range | 1 - 32 kg | Minimum Bundle Size | 200 mm(W) x 20 mm(H) x 300 mm(L) |
| Bundle Weight | max 40 kg | ||
| Transport Speed | 15 – 60 M/minute | ||
| Electrical Requirements | 220V, 380V, 400V, 415V 50/60Hz 3PH |
