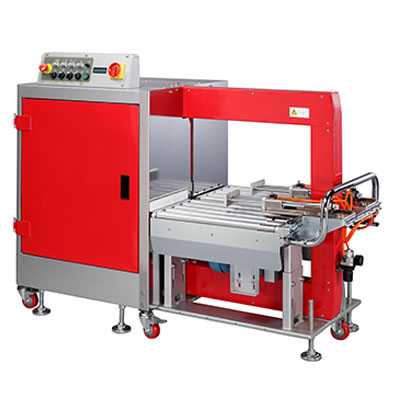

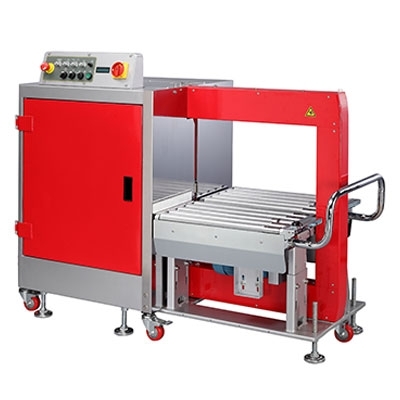

TP-702YA Mercury Transit
Mercury Transit TP-702YA is a high-speed fully automatic side-seal strapping machine. It can be put into a wide range of applications, such as household appliances, furniture, tile industries, logistics, etc. Inheriting all the advantages from Mercury TP-702, it is ideal for high capacity and efficiency automated lines.
Features
- Robust and compact strapping head
- High strapping speed up to 35 packages per minute

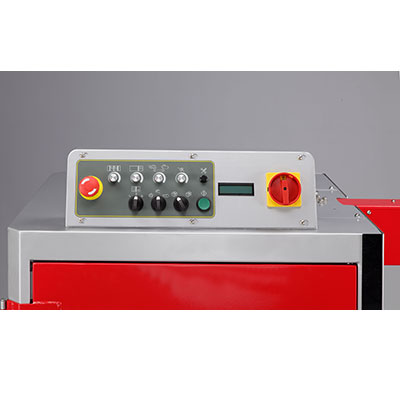

- Control panel with LCD display
- Free access to strap guides (patents registered)
- Downward tension force
- Up and down stream interlock

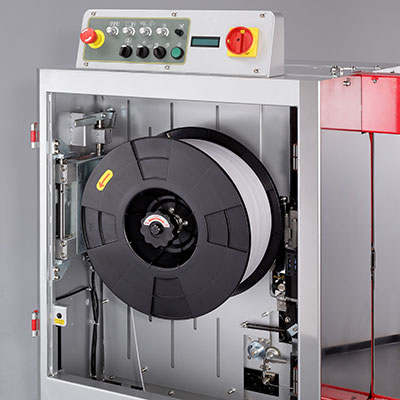

- Inner strap dispenser design
- Adjustable table height from 445 mm to 645 mm
Options
- Siemens PLC control
- Light tower with low strap sensor
- Energy saving transit with auto sleep mode

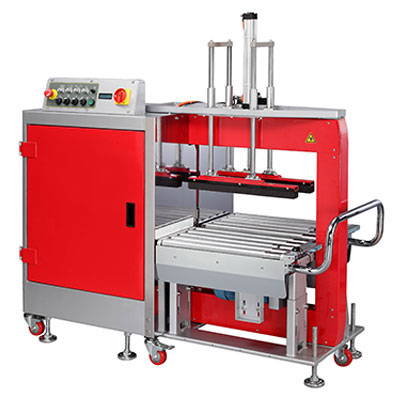

- Dual press bar
- Side pusher
- Small Package
Green Tech
Technical Data
| Strap Width | 5mm, 6 mm, 9 mm, or 12 mm |
| Tension Range | 1 - 32 kg (for 5 mm, 6 mm, and 9 mm) 1 - 55 kg (for 12 mm) |
| Capacity | Up to 35 packages/minute |
| Weight | 340 kg |
| Electrical Requirements | 110V, 220V, 230V, 240V 50/60Hz 1PH 220V, 380V, 400V, 415V 50/60Hz 3PH |
